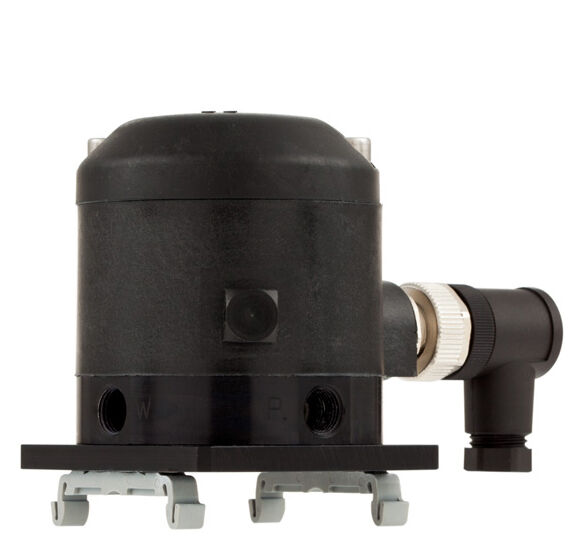

Type 8045 – Electro-pneumatic converter

i/p converter for the electrical control of pneumatic positioners. Suitable for field and switch cabinet assembly. Suitable for remote control of valves in hazardous areas. Also in Ex version II 2 G EEx ib IIC T6.

  • Material

    Material:

    Body: Aluminum anodised

  • Temperature

    Temperature:

    14 °F up to 140 °F

Connection

G 1/8"
Protection class

IP 54
Input

0 - 20 mA or 4 - 20 mA
Output

3 - 15 psi or 7 - 60 psi
Air in

60 ... 90 psi at output 3 ... 15 psi

75 ... 90 psi at output 7 ... 60 psi
Approvals and certificates

EC Declaration of Conformity

UKCA Declaration of Conformity
For details, see the documentation or upon request.
