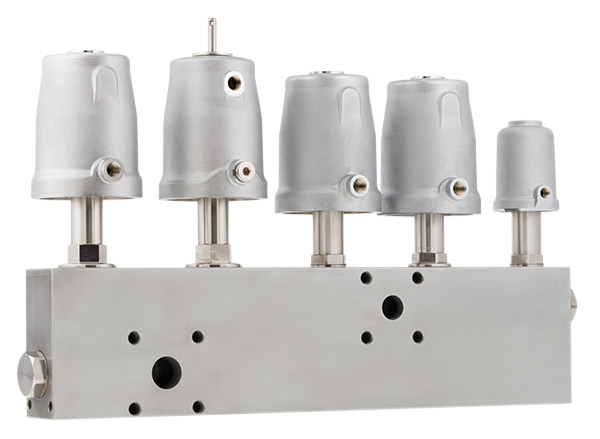

Type 7005 – Compact valve manifolds

Compact valve manifolds with low piping effort, reduced maintenance time and minimize investment costs. A connection system well-known from the field of hydraulics and adapted to the respective application, allows for the intelligent combination of several valves in a customerspecific manifold. All necessary connections between the individual process valves are integrated in the manifold. Additional pressure and temperature sensors can be integrated at any time.

  • Size

    Size:

    ½" – 2"

  • Pressure

    Pressure:

    580 psi

  • Material

    Material:

    Stainless steel 316 Ti / 316 / 304 / 303

    Spheroidal graphite iron 60-40-18

  • Temperature

    Temperature:

    Media Temperatur: -22°F up to +392°F

    optionally up to +428°F

Connection

Connections for fluid input and output can be selected and interconnected according to requirements.
For details, see the documentation or upon request.
