Ball-Sector Valves

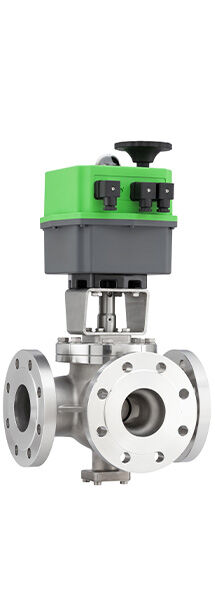

Type 4083 – Three-way ball sector valve with electric actuator

The three-way ball sector valve type 4083 with electric actuator in diverting or mixing function is ideal for a wide range of process control applications. Due to its design, the three-way ball sector valve enables high-precision control (rangeability of 100:1) over a wide range and features exceptionally high Kvs values in all flow directions.

  • Size

    Size:

    2" - 6"

  • Pressure

    Pressure:

    2": 580 psi

    6": 363 psi

  • Material

    Material:

    Stainless steel CF8M / 316L

  • Temperature

    Temperature:

    Media temperatur: -40 °F up to 428 °F

    depending on the sealings

Connection

Flanges according to DIN EN 1092-1
Accessories

Limit switch

Position feedback

Fail safe feature

. . .
Actuator

Control actuators or 3-point actuators

Thrust 230 VAC, 115 VAC, 24 VAC,

400 V, 24 VDC
Actuator variants

Electrical rotating actuator (on/off, control)
Application

Fluids, suspensions as well as gases
Ex-proof

optional ATEX non-electrical

II 2G Ex h IIC T6…T2 X Gb

II 2D Ex h IIIC 85°C…220°C X Db
Approvals and certificates

EC Declaration of Conformity

UKCA Declaration of Conformity
For details, see the documentation or upon request.
