Sliding Gate Valves

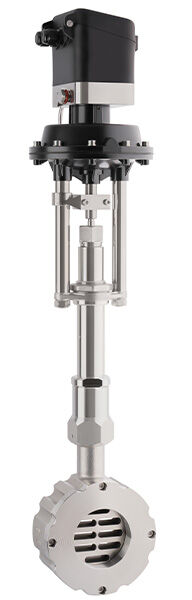

Type 8024 – High temperature sliding gate valve

GS3 series

High temperature control valve, suitable for high temperature applications up to 986°F. It is similar in its design to the 8021, equipped with an integrated positioner (top-mounted) as standard.

  • Size

    Size:

    1/2" - 10"

  • Pressure

    Pressure:

    145/580 psi

    ANSI #150, #300

  • Material

    Material:

    Stainless steel

    Body CF8M

    Cover 316L

  • Temperature

    Temperature:

    Media temperature: -76 °F up to 986 °F

    Special versions available on request.

Connection

Wafer type design
Positioner

Digital positioner type 8049

- 2-wire, 4-wire

- Ex-Pro explosion-proof

- IO-Link

- Integrated process controller IPC

Pneumatic and electro-pneumatic positioner type 8047

- 2-wire

- Ex version

Positioner with mounting acc. to NAMUR standard
Accessories

Metal bellows

Limit switch

Position feedback

Manual override

Pilot valve

. . .
Ex-proof

optional ATEX non-electrical

II 2G Ex h IIC T6…T1 X Gb

II 2D Ex h IIIC 85°C…530°C X Db
Approvals and certificates

CRN Certificate

TA-Luft / ISO 15848-1

EC Declaration of Conformity

UKCA Declaration of Conformity

Safety manual with SIL manufacturer's declaration
For details, see the documentation or upon request.
