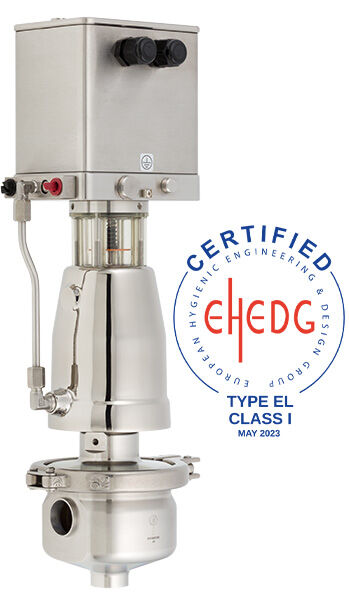

Type 6051 – Aseptic Right Angle Valve with EHEDG-Certification
Pneumatic control valve in right angle design with integrated digital positioner for sterile control in bio-pharm, food & beverage and other clean industries. This product is EHEDG (European Hygienic Engineering and Design Group) certified. All wetted parts comply with FDA, USP class VI and regulations (EG) 1935/2004 and (EU) 10/2011.
-
Size:
1/2" - 2 1/2‘‘
-
Pressure:
232psi
-
Material:
Body: Stainless steel 316L
Diaphragm: EPDM diaphragm with PTFE-foil
-
Temperature:
Media temperatur: -4 °F up to +284 °F
| Connection |
Welding ends DIN 11850 series 2 Welding ends ASME BPE Welding ends ISO 1127 Tri-clamp acc. Inch (DIN 32676-C) |
| Positioner |
Digital positioner type 8049 - 2-wire, 4-wire - Ex-Pro explosion-proof - IO-Link - Integrated process controller IPC Without positioner for shut-off function |
| Accessories |
Limit switch Position feedback Pilot valve … |
| Positioner variants |
Positioner in completely stainless steel design |
| Ex-proof |
optional ATEX non-electrical II 3G/2G Ex h IIC T6…T3 X Gc/Gb II 3D/2D Ex h IIIC 85°C…140°C X Dc/Db |
| Versions |
Wetted surface Ra< 0,6 µm Wetted surface electropolished Ra< 0.4 µm Wetted surface electropolished Ra< 0.25 µm |
| Approvals and certificates |
EHEDG-Certificate EC Declaration of Conformity UKCA Declaration of Conformity |
| For details, see the documentation or upon request. | |
