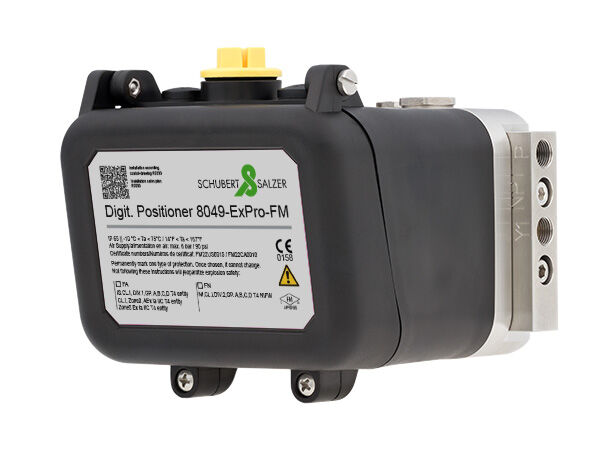

Type 8049-ExPro – Digital Positioner

Compact digital positioner for mounting on linear and quarter-turn actuators. No steady state air loss, with minimized consumption. The configuration software "DeviceConfig" enables easy diagnostics and setup. This positioner can be configured in different versions with a variety of accessories.

Connection

G1/8", NPT 1/8"
Accessories

Feedback module RM4
Body variants

Aluminum / Polymer

Stainless steel / Polymer

Completely stainless steel
Actuator variants

For linear and rotary actuators
Input signal

0/4-20 mA
Nominal stroke

3 - 24 mm or 0-90°
Protection class

IP 65
Ex-proof

8049-ExPro-1:

- II 2G Ex ia IIC T4 Gb

- BVS 17 ATEX E 088

8049-ExPro-0:

- II 1G Ex ia IIC T4 Ga

- BVS 17 ATEX E 088

8049-ExPro-FM:

- FA

IS.CL.I, DIV.1,GP.A,B,C,D T4 entity

CL.I, Zone0, AEx ia IIC T4 entity

Zone0 EX ia IIC T4 entity

- FN

NI, CL.I,DIV.2,GP.A,B,C,D T4 NIFW

- FM22US0015/FM22CA0010
Adjustment of stroke and zero point

Self-adapting
Approvals, certificates and declarations

EU Declaration of Conformity
For details, see the documentation or upon request.
