On/Off Valves

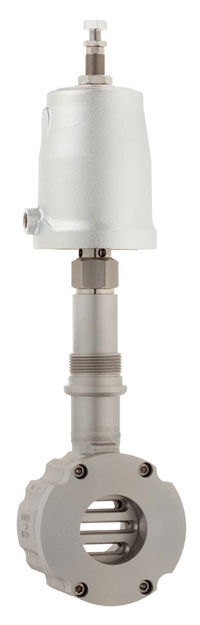

Type 8040 – Sliding gate valve

GS3 series

High cycle stop valve based upon the sliding gate principle. Extremely fast reaction times up to 200 ms, make it ideal for rapid delivery of a variety of neutral and agressive fluids in process applications.

  • Size

    Size:

    1/2" - 8"

  • Pressure

    Pressure:

    145/580 psi

    ANSI #150, #300

  • Material

    Material:

    Stainless steel

    Body CF8M

    Cover 316L

    Carbon steel

    Body WCB

    Cover 316L

  • Temperature

    Temperature:

    Media temperature: -76 °F up to 662 °F

    Special versions available on request.

Connection

Wafer type design
Accessories

Metal bellows

Limit switch

Pilot valve

Stroke limitation

. . .
Ex-proof

optional ATEX non-electrical

II 2G Ex h IIC T6…T1 X Gb

II 2D Ex h IIIC 85°C…350°C X Db
Approvals and certificates

CRN Certificate

TA-Luft / ISO 15848-1

EC Declaration of Conformity

UKCA Declaration of Conformity

Safety manual with SIL manufacturer's declaration
For details, see the documentation or upon request.
