Manual Valves

Manual Valves

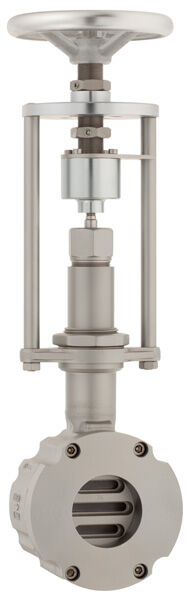

Type 8050 – Sliding gate valve

GS3 series

Precise GS manual valve with a handwheel actuator for on / off and control operation. Neutral and aggressive media could safely be handled with low actuation force.

  • Size

    Size:

    1/2" - 10"

  • Pressure

    Pressure:

    145/580 psi, 1450psi

    ANSI#150, #300, #600

  • Material

    Material:

    Stainless steel

    Body CF8M

    Cover 316L

    Carbon steel

    Body WCB

    Cover 316L

  • Temperature

    Temperature:

    Media temperature: -76 °F up to 662 °F

    Special versions available on request.

Connection

Wafer type design
Accessories

Metal bellows

Limit switch

. . .
Ex-proof

optional ATEX non-electrical

II 2G Ex h IIC T6…T1 X Gb

II 2D Ex h IIIC 85°C…530°C X Db
Approvals and certificates

CRN Certificate

TA-Luft / ISO 15848-1

EU Declaration of Conformity

UKCA Declaration of Conformity
For details, see the documentation or upon request.
